The beacon light has a 2-pin connector that must connect to the main harness. The main harness connection will run from the ECU along the inside of the vehicle out to an external part of the vehicle to the beacon light.
The Install Guide details the relevant mounting and connections in sections 3.2.8 and 3.3.8.
| The OEM green wire from vehicle goes to purple wire on MAX-SAFE harness. |  |

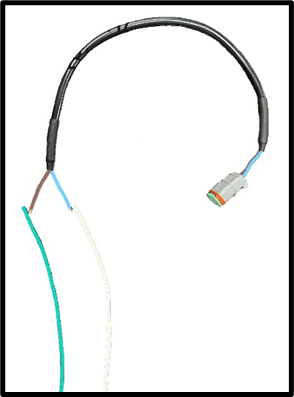

| The outside strobe light, OEM green wire goes to brown wire; OEM white wire goes to pale blue wire. |  |
